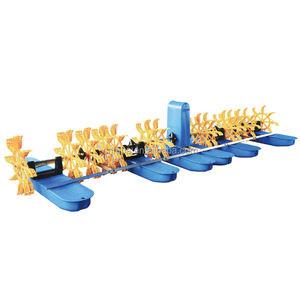

Fish Shrimp Pond Aquaculture Machine Fine Bubble Paddle wheel
Aerator For aquaculture
1hp Aerator 1hp Fish Farming Aquaculture Aerator Paddle Wheel
Areators Aerating A Pond
(1) Increase the ponds’ oxygen levels and prevents oxygen
depletion. Oxygen depletion in a pond will cause massive mortality
of all fish/shrimp life.
(2) Increase productivity of ponds by 3 to 5 times over the normal
production. You can produce more in the same area of ponds with a
paddle wheel aerator than without a paddle wheel aerator.
(3) Maintains an even uniform distribution of oxygen levels and
temperature.
(4) Mixes’bottom nutrients and enable the microorganism (bacteria)
to breakdown and make them available for algae’s production.
(5) Maintains water quality and enhances the growth of algae.
(6) Creates water current in the pond, which the fish / shrimp
prefer. Fish / shrimp prefer environment where there is water
current.
(7) Minimizes areas where the water surface is very still, where
waste and dirt accumulate on the surface and bottom of the pond
water.
(8) The transport, installation and maintenance of paddle wheel
aerator is easy.
Feature:
1. adopt the arc beve; gear,instead of a turbine scroll bar,energy
efficient,than traditional machine Energy sacing more than 20%;
2. the arc bevel gear production of chromium manganese titanium
alloy steel manufacture,the surface carbonitriding,high
hardness,Long service life;
3. use of mechanical seal,to ensure no leakage pollution;
4. motor built-in protection device,to avoid accidentally burned
out motor; 5.the overall plastic pontoon,nylon impeller,stainless
steel shaft and bracket.
Name | Paddle wheel aerators |
Application filed | Fish Farming Fish Pond |
Application | Fish Farming Oxygen Increasing |
Material | 201 Stainless Steel |
Motor | Electric Motor |
Power | 0.75kw |
Voltage | 380V |
Function | Increasing Dissolved Oxygen |
Weight | 60kg |
Usage | Fishing Farming Water Paddle Wheel Aerator |
1. High quality motor expertise design for aquaculture industry.
2. Low friction gear reduce with low resistance to decrease energy
losses.
3. Sturdy stainless steel frame ensure without any deformation and
high durability.
4. High performance impeller,replaceable paddle ,low maintenance
cost.
5. HDPE float resist impact,acid-alkalinity and sun exposure. It
can work a long time.
Power | Voltage | Loading Area | Power efficiency(kg02/kwh) | oxygentranster capacity(KgO2/kwh) | Noise db(A) |
0.75kw | 220V | 1-5 | ≥1.25 | ≥1.1 | ≤78 |
0.75kw | 380V | 1-5 | ≥1.25 | ≥1.1 | ≤78 |
1.5kw | 220V | 3-10 | ≥1.25 | ≥1.5 | ≤78 |
1.5kw | 380V | 3-10 | ≥1.25 | ≥1.5 | ≤78 |
2.2kw | 380V | 4-12 | ≥1.5 | ≥2.0 | ≤78 |
1. Motor built-in protection device,when the three-phase power
phase or motor overheating will automatically jump to avoid
accidents,motor burned out;
2. gear using material chromiun manganese titanium alloy
steel,tooth surface after carbonitriding,prolonging the service
life greatly;
3. according to the special requirements of different use of the
environmentand the user,developed engineering plastics and
stainless steel impller,ensure in sea water or industrial corrosive
wasterwater in the long-time use,without frequent replacement of
the impeller or brush paint.
Product application areas
① Application of deep well solar pump to irrigation
② Village and town water supply
③ Clean drinking water
④ Garden watering
⑤ Environment friendly
⑥ Pumping and drip irrigation
FAQ
Q1. Are you a manufacturer or trading company?
A: We are a manufacturer.
Q2. What's your company's main products?
A: Our company is specialized in kinds of aerators for fish pond
and shrimp pond, such as paddlewheel aerator.
Q3. What's the MOQ for your production?
A: NO MOQ.
Q4. What's the lead time?
Usually about 15days-20days, if large quantity, will check the
production line and arrange the schedule.
Q5. What's your payment term?
A: 30% T/T in advance, the rest pay off before delivery.
Q6. Where is your loading port?
A: Ningbo, or else port in China as your requirements.
